The Zora-3 Server is the brain of your onboard navigation and boat management system — a compact, fanless unit that connects all your marine systems and gives you full access to Zora from any device on board. Start with just the server and your phone or tablet for complete navigation, instruments, and boat monitoring over Wi-Fi — no dedicated screens required. When you're ready, add a Mini PC to drive up to three helm displays, and scale from there without ever replacing what you've already installed.
Want to go deeper?
Explore all the details in our guide →
Key Features
- Full system access from iPhone, iPad, or laptop over Wi-Fi — no screens needed to get started
- Charts stored directly on the server — available offline at sea with no internet dependency
- Fanless, no moving parts — built to handle heat, humidity, and vibration in a marine environment
- Ultra-low power draw (2.5–8 W) — ideal for liveaboards and extended offshore passages
- Modular and additive — add Mini PCs, screens, or expansion modules as your needs grow; nothing gets replaced
- Built-in NMEA 2000 and NMEA 0183 connectivity — integrates with your existing marine instruments out of the box
- Automatic updates in the marina — charts, weather, and software stay current with zero effort; fully offline at sea
- Expandable I/O — stackable modules add extra CAN bus ports, serial connections, digital and analog I/O, and wireless mesh networking
- Remote access and servicing — securely monitor your boat from anywhere or grant your installer technical access without exposing personal data
Specifications
- Processor: Quad-core ARM Cortex-A53 at 1.8 GHz with Cortex-M7 real-time co-processor
- Memory: 8 GB LPDDR4 RAM
- Onboard Storage: 64 GB eMMC flash
- Included SSD: 256 GB (pre-installed)
- Network: 2× Gigabit Ethernet (RJ45), Wi-Fi 802.11ac, Bluetooth 5.3
- Built-in I/O: 1× NMEA 2000 CAN bus, 1× NMEA 0183 serial, 1× USB 3.0, 2× digital in / 2× digital out
- Power Supply: 12–24 V DC with reverse voltage protection
- Power Consumption: 2.5–8 W depending on load
- Cooling: Fully passive, fanless
- Dimensions: 110 × 30 × 95 mm (gateway unit)
- Weight: 0.22 kg (gateway unit)
- Mounting: DIN rail (EN 50022)
- Operating Temperature: −40 °C to +70 °C
- MTTF: > 200,000 hours
What's Included

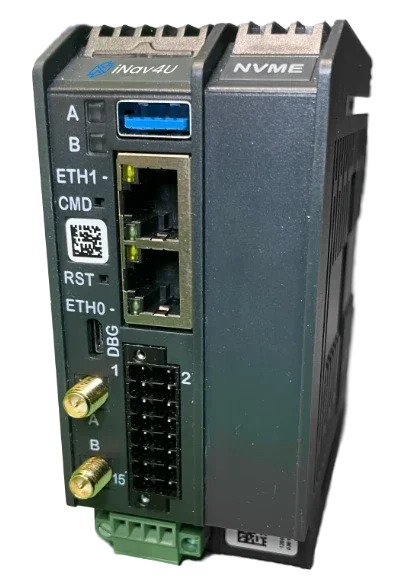

- Zora-3 Server main unit

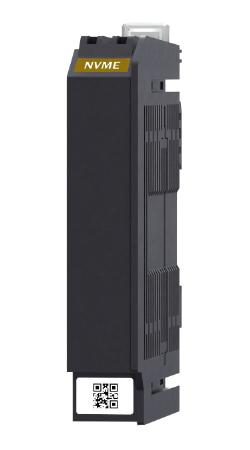

- 256 GB SSD storage module (pre-installed)
Compliance & Warranty
FCC, CE, and UKCA certified. Meets EMC standards EN 55032/5, EN 61000-6-2, and EN 61000-6-3. Safety certified to EN/UL/IEC 62368-1.
On larger vessels, you can deploy dedicated Zora-3 Servers for separate zones — a fully isolated navigation server on the bridge, a systems server for engine room and technical monitoring, and a crew or hotel server for interior areas. Each zone runs independently while sharing data where it makes sense. The architecture is purely additive: you never replace anything, you only expand.
