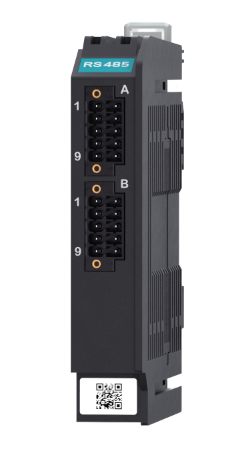

Connect your RS485 and Modbus devices directly to the Zora-3 platform. The RS485 Module adds four dedicated RS485 ports to your Zora-3 Main Unit, letting you integrate battery monitors, tank sensors, generators, and other onboard systems that communicate over RS485 or NMEA 0183 — all feeding into a single, unified navigation platform.
Want to go deeper?
Explore all the details in our guide →
Key Features
- Four independent RS485 ports — connect multiple onboard systems simultaneously without running out of inputs
- Two galvanically isolated port blocks — Ports 0 & 1 and Ports 2 & 3 are electrically separated from each other and from the main system, protecting against ground loops and interference
- NMEA 0183 compatible — wire directly to legacy marine instruments using standard D+/D− connections
- Selectable 120 Ω termination on each port — simple pin bridge lets you properly terminate the bus without extra components
- Robust ESD protection (±15 kV) — built to handle the electrical realities of a marine environment
- Data rates up to 4 Mbps — fast enough for any RS485 device on your boat
- Powered by the Main Unit — no additional power supply or wiring needed

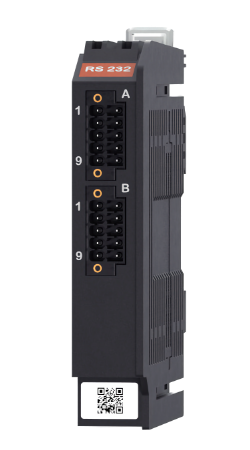

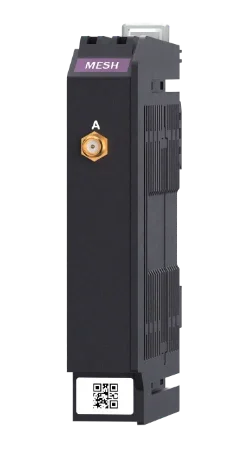

- Stackable — add up to three RS485, RS232, or MESH modules to expand your Zora-3 system as your needs grow
- DIN rail mountable — clean, secure installation in your electronics panel
Specifications
- Ports: 4x half-duplex RS485 (MAX13488E transceivers)
- Standard: TIA/EIA-485
- Max Data Rate: 4 Mbps
- Isolation: Galvanic isolation between port blocks and main system
- ESD Protection: ±15 kV
- Connectors: 2x 10-pin dual-row push-in spring plugs (3.5 mm pitch, AWG 16–26)
- Mounting: DIN rail (EN 50022)
- Housing: ABS/PC high endurance
- Dimensions: 110 × 20 × 95 mm (H × W × D)
- Weight: 110 g
- Operating Temperature: −30 °C to 70 °C
- Storage Temperature: −40 °C to 85 °C
- MTTF: > 200,000 hours
What's Included
- Zora-3 RS485 Module (IFM-RS485)
- 2x 10-pin mating connector plugs
Compliance & Warranty
Certified FCC, CE, and UKCA. Meets EN 55032/5, EN 61000-6-2, EN 61000-6-3 (EMC) and EN/UL/IEC 62368-1 (Safety).
