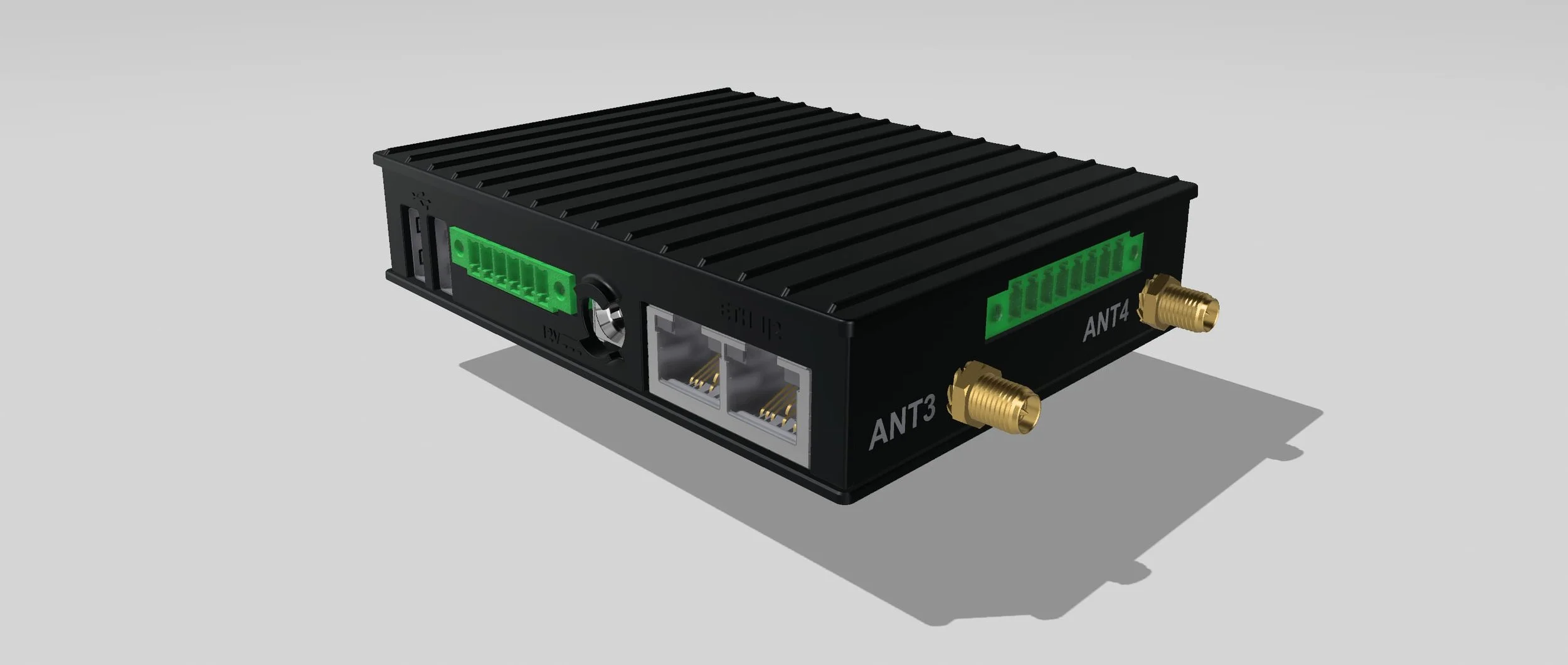

The Zora-2 Server is the brain of your onboard navigation system — a compact, fanless unit that powers every screen, phone, and tablet on your boat. Charts, weather, and software updates download directly to the server and stay available offline at sea, so you're never dependent on an internet connection when it matters most. Start with just the server and your phone or tablet — then scale up with dedicated helm displays whenever you're ready.
Want to go deeper?
Explore all the details in our guide →
Key Features
- One server powers your entire boat — drives multiple Mini PCs, screens, phones, and tablets across the vessel, with no additional server ever needed
- Full navigation on your phone or tablet — not a companion app, but the complete system accessible anywhere on board
- Charts and weather stored offline on the server — downloaded directly and available at sea with zero internet dependency
- Always up to date, zero effort — software, charts, and weather sync automatically when connected to the internet at a marina; fully offline at sea
- Modular and scalable — start screen-free with just your mobile devices, add Mini PCs and monitors as your needs grow
- Remote access from anywhere — pair with a VPN on your boat's router to monitor and manage your system from home or while traveling, secured with military-grade encryption
- Remote servicing for your installer — grant technical-only access so your marine professional can diagnose issues without being on board
- Fanless, passively cooled aluminum housing — silent, reliable, and built for the long haul in a marine environment
- Ultra-low power consumption — draws just 2–7W, ideal for liveaboards and extended offshore passages
Specifications
- Processor: NXP i.MX8M Mini, quad-core ARM Cortex-A53 at 1.8 GHz with real-time co-processor
- Memory: 4 GB LPDDR4
- Storage: 32 GB eMMC on-board (optional 32 GB expansion module)
- Networking: Gigabit + Fast Ethernet (dual RJ45); WiFi 6 (2.4/5 GHz) with dual antennas; Bluetooth 5.1 BLE
- Connectivity: 3× USB 2.0 (Type-A); RS485/RS232 serial port; up to 2× CAN-FD interfaces
- Security: Secure boot with TPM 2.0
- Power Input: 8–36 V DC with reverse-voltage protection
- Power Consumption: 2–7 W
- Dimensions: 112 × 84 × 25 mm
- Weight: 450 g
- Cooling: Passive (fanless), aluminum enclosure
What's Included
- Zora-2 Server unit
- 2× WiFi/Bluetooth dual-band antennas
- Power and connectivity cables
- Mounting hardware
Compliance & Warranty
CE and FCC certified. Meets EMC standards EN 55032/5, EN 61000-6-2, and EN 61000-6-3, plus safety certification under EN/UL/IEC 62368-1. Covered by the iNav4U manufacturer warranty.
